Shallow Water Tutorial 1D with Numpy (Simple)#
The following the model is described in the paper:
```
@article{Delestre_2013,
title={SWASHES: a compilation of Shallow Water Analytic Solutions for Hydraulic and Environmental Studies},
volume={72},
ISSN={0271-2091, 1097-0363}, DOI={10.1002/fld.3741},
note={arXiv:1110.0288 [physics]},
number={3},
journal={International Journal for Numerical Methods in Fluids},
author={Delestre, Olivier and Lucas, Carine and Ksinant, Pierre-Antoine and Darboux, Frédéric and Laguerre, Christian and Vo, Thi Ngoc Tuoi and James, Francois and Cordier, Stephane},
year={2013},
month=may,
pages={269–300}
}
```
Imports#
# | code-fold: true
# | code-summary: "Load packages"
# | output: false
import os
import numpy as np
import pytest
from sympy import Matrix
import pytest
import param
from zoomy_core.fvm.solver_numpy import HyperbolicSolver, Settings
import zoomy_core.fvm.timestepping as timestepping
import zoomy_core.fvm.nonconservative_flux as nc_flux
from zoomy_core.model.basemodel import Model
import zoomy_core.model.initial_conditions as IC
import zoomy_core.model.boundary_conditions as BC
import zoomy_core.misc.io as io
from zoomy_core.mesh.lsq_reconstruction import compute_derivatives
from zoomy_core.misc.misc import Zstruct, ZArray
import zoomy_core.misc.misc as misc
from zoomy_tests.swashes import plots_paper
from zoomy_core.mesh import BaseMesh
class SWE(Model):
"""
Shallow Water Equations (SWE) Model.
Supports 1D and 2D configurations automatically based on 'dimension'.
"""
# --- 1. Configuration & Physics Constants ---
dimension = param.Integer(default=1)
# Define variables dynamically based on dimension (h, hu, [hv])
variables = lambda self: self.dimension + 1
# Aux variables for topography (dh/dx)
aux_variables = 1
parameters = param.Parameter(
default={
"g": (9.81, "positive"),
"ex": (0.0, "positive"),
"ey": (0.0, "positive"),
"ez": (1.0, "positive"),
}
)
# --- 2. Physics (Conservation Laws) ---
def flux(self):
# 1. Setup
dim = self.dimension
h = self.variables[0]
hu_vec = self.variables[1 : 1 + dim]
# 2. Helper Variables
# Use self.parameters.name for physics constants
g = self.parameters.g
U = Matrix([hu / h for hu in hu_vec]) # Velocity vector
I = Matrix.eye(dim)
# 3. Flux Tensor Construction
# Rows = Equations (Mass, Momentum X, Momentum Y)
# Cols = Spatial Dimensions (Flux in X, Flux in Y)
F = Matrix.zeros(self.n_variables, dim)
# Mass Flux: h * U
F[0, :] = (h * U).T
# Momentum Flux: hUU^T + 0.5gh^2I
F[1:, :] = h * U * U.T + (g / 2) * h**2 * I
# Return list of columns [Flux_X, Flux_Y]
return ZArray(F)
# --- 3. Visualization Logic ---
def project_2d_to_3d(self):
out = ZArray.zeros(6)
dim = self.dimension
z = self.position[2]
# Unpack state
h = self.variables[0]
hu_vec = self.variables[1 : 1 + dim]
U = [hu / h for hu in hu_vec]
# Visualization Constants
rho_w = 1000.0
g = 9.81
b = 0 # Bathymetry placeholder
# Map to 3D visualization vector
out[0] = b
out[1] = h
out[2] = U[0]
out[3] = 0 if dim == 1 else U[1] # v-velocity
out[4] = 0 # w-velocity
out[5] = rho_w * g * h * (1 - z) # Hydrostatic pressure
return out
bcs = BC.BoundaryConditions(
[
BC.Extrapolation(tag="left"),
BC.Extrapolation(tag="right"),
]
)
def custom_ic(x):
Q = np.zeros(2, dtype=float)
Q[0] = np.where(x[0] < 5., 0.005, 0.001)
return Q
ic = IC.UserFunction(custom_ic)
model = SWE(
boundary_conditions=bcs,
initial_conditions=ic,
)
main_dir = os.getenv("ZOOMY_DIR")
# mesh = petscMesh.Mesh.from_gmsh(
# os.path.join(main_dir, "meshes/channel_quad_2d/mesh.msh")
# )
mesh = petscMesh.Mesh.create_1d(domain=(0.0, 10.0), n_inner_cells=500)
class SWESolver(HyperbolicSolver):
def update_qaux(self, Q, Qaux, Qold, Qauxold, mesh, model, parameters, time, dt):
dudx = compute_derivatives(Q[1]/Q[0], mesh, derivatives_multi_index=[[0, 0]])[:,0]
Qaux[0]=dudx
return Qaux
settings = Settings(name="ShallowWater", output=Zstruct(directory="outputs/shallow_water_1d", filename="swe", clean_directory=True, snapshots=2))
solver = SWESolver(time_end=6.0, settings=settings, compute_dt=timestepping.adaptive(CFL=0.95))
Qnew, Qaux = solver.solve(mesh, model)
2026-03-19 17:55:53.741 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 10, time: 0.718260, dt: 0.067958, next write at time: 6.000000
2026-03-19 17:55:53.772 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 20, time: 1.392979, dt: 0.067263, next write at time: 6.000000
2026-03-19 17:55:53.808 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 30, time: 2.064282, dt: 0.067054, next write at time: 6.000000
2026-03-19 17:55:53.845 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 40, time: 2.734237, dt: 0.066956, next write at time: 6.000000
2026-03-19 17:55:53.890 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 50, time: 3.403455, dt: 0.066898, next write at time: 6.000000
2026-03-19 17:55:53.921 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 60, time: 4.072203, dt: 0.066858, next write at time: 6.000000
2026-03-19 17:55:53.962 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 70, time: 4.740621, dt: 0.066830, next write at time: 6.000000
2026-03-19 17:55:54.012 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 80, time: 5.408794, dt: 0.066808, next write at time: 6.000000
2026-03-19 17:55:54.057 | INFO | zoomy_core.fvm.solver_numpy:solve:295 - Finished simulation with in 0.357 seconds
io.generate_vtk(os.path.join(settings.output.directory, f"{settings.output.filename}.h5"))

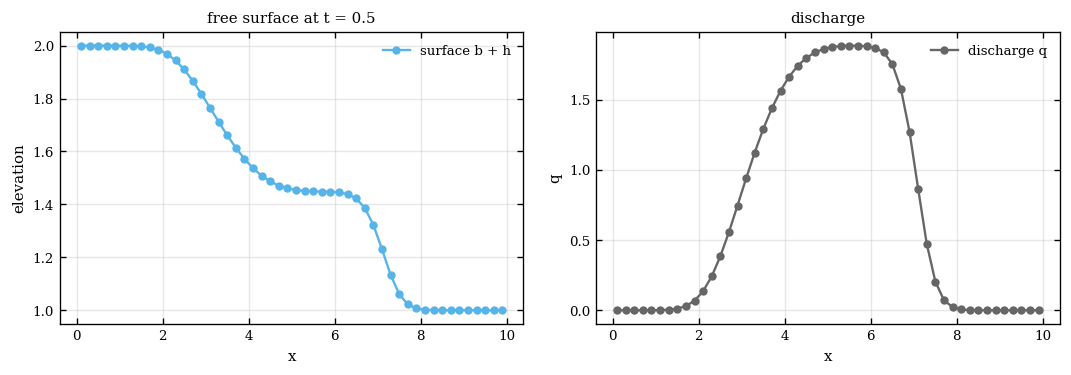

fig = plots_paper.plot_swe(os.path.join(settings.output.directory, settings.output.filename + ".h5"))
---------------------------------------------------------------------------
RuntimeError Traceback (most recent call last)
Cell In[6], line 1
----> 1 fig = plots_paper.plot_swe(os.path.join(settings.output.directory, settings.output.filename + ".h5"))
File ~/git/Zoomy/library/zoomy_tests/zoomy_tests/swashes/plots_paper.py:164, in plot_swe(path)
161 g = 9.81
163 fig, ax = plt.subplots(1,2, figsize=(fig_width, fig_height), constrained_layout=True, sharey=False)
--> 164 a_x, a_b, a_h, a_u = analytical_swe()
165 ax[0].plot(x, h, label=r'$h$')
166 ax[0].plot(a_x, a_h, 'k*', label=r'$h^{ana}$')
File ~/git/Zoomy/library/zoomy_tests/zoomy_tests/swashes/plots_paper.py:139, in analytical_swe()
138 def analytical_swe():
--> 139 s = pyswashes.OneDimensional(3, 1, 1, 50)
141 print(s.dom_params)
143 x = np.linspace(0, s.dom_params['length'], int(s.dom_params['ncellx']))
File ~/git/Zoomy/.venv/lib/python3.12/site-packages/pyswashes/pyswashes.py:496, in OneDimensional.__init__(self, stype, domain, choice, num_cell_x, swashes_bin)
495 def __init__(self, stype, domain, choice, num_cell_x, swashes_bin=''):
--> 496 SWASHES.__init__(self, 1., stype, domain, choice, num_cell_x,
497 swashes_bin=swashes_bin)
File ~/git/Zoomy/.venv/lib/python3.12/site-packages/pyswashes/pyswashes.py:111, in SWASHES.__init__(self, dimension, stype, domain, choice, num_cell_x, num_cell_y, swashes_bin)
108 self.params = [dimension] + input_int
110 # set the executable
--> 111 self._set_executable(path_to_bin=swashes_bin)
113 # parameters of the domain
114 self.dom_params = {'length': None, 'width': None,
115 'dx': None, 'dy': None,
116 'ncellx': None, 'ncelly': None}
File ~/git/Zoomy/.venv/lib/python3.12/site-packages/pyswashes/pyswashes.py:147, in SWASHES._set_executable(self, path_to_bin)
145 # check if the executable exists
146 if not shutil.which(self.swashes_bin):
--> 147 raise RuntimeError("SWASHES executable not found: {}"
148 "".format(self.swashes_bin))
149 return self
RuntimeError: SWASHES executable not found: swashes
2D Case#
bcs = BC.BoundaryConditions(
[
BC.Extrapolation(tag="left"),
BC.Extrapolation(tag="right"),
BC.Extrapolation(tag="top"),
BC.Extrapolation(tag="bottom"),
]
)
def custom_ic(x):
Q = np.zeros(3, dtype=float)
Q[0] = np.where(x[0] < 5.0, 0.005, 0.001)
return Q
ic = IC.UserFunction(custom_ic)
model = SWE(
dimension=2,
boundary_conditions=bcs,
initial_conditions=ic,
)
main_dir = misc.get_main_directory()
mesh = petscMesh.Mesh.from_gmsh(
os.path.join(main_dir, "meshes/channel_quad_2d/mesh.msh")
)
# mesh = petscMesh.Mesh.create_1d(domain=(0.0, 10.0), n_inner_cells=500)
class SWESolver(HyperbolicSolver):
def update_qaux(self, Q, Qaux, Qold, Qauxold, mesh, model, parameters, time, dt):
dudx = compute_derivatives(Q[1] / Q[0], mesh, derivatives_multi_index=[[0, 0]])[
:, 0
]
Qaux[0] = dudx
return Qaux
settings = Settings(
name="ShallowWater",
output=Zstruct(
directory="outputs/shallow_water_2d", filename="swe", clean_directory=True, snapshots=2
),
)
solver = SWESolver(
time_end=6.0, settings=settings, compute_dt=timestepping.adaptive(CFL=0.95)
)
Qnew, Qaux = solver.solve(mesh, model)
2026-01-09 15:24:46.007 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 10, time: 2.244563, dt: 0.212367, next write at time: 6.000000
2026-01-09 15:24:46.275 | INFO | zoomy_core.fvm.solver_numpy:run:285 - iteration: 20, time: 4.353059, dt: 0.210197, next write at time: 6.000000
2026-01-09 15:24:46.499 | INFO | zoomy_core.fvm.solver_numpy:solve:295 - Finished simulation with in 0.788 seconds
io.generate_vtk(
os.path.join(settings.output.directory, f"{settings.output.filename}.h5")
)
2026-01-09 15:24:46.877 | INFO | zoomy_core.postprocessing.postprocessing:vtk_project_2d_to_3d:76 - Converted snapshot 0/2
2026-01-09 15:24:46.884 | INFO | zoomy_core.postprocessing.postprocessing:vtk_project_2d_to_3d:76 - Converted snapshot 1/2
2026-01-09 15:24:46.916 | INFO | zoomy_core.postprocessing.postprocessing:vtk_project_2d_to_3d:79 - Output is written to: /home/ingo/Git/Zoomy/outputs/shallow_water_2d/out_3d.h5/out_3d.*.vtk
@pytest.mark.nbworking
def test_working():
assert True
