Simple

Poission Tutorial (Simple)

Imports

import os
import numpy as np
import jax
from jax import numpy as jnp
import pytest
from types import SimpleNamespace
from sympy import cos, pi
from time import time as gettime

from zoomy_jax.fvm.solver_jax import PoissonSolver, Settings
from zoomy_core.fvm.ode import RK1
import zoomy_core.fvm.reconstruction as recon
import zoomy_core.fvm.timestepping as timestepping
import zoomy_core.fvm.flux as flux
import zoomy_core.fvm.nonconservative_flux as nc_flux
from zoomy_core.model.models.poisson import Poisson
from zoomy_core.model.boundary_conditions import BoundaryCondition
from zoomy_core.model.models.basisfunctions import Basisfunction, Legendre_shifted
from zoomy_core.model.models.basismatrices import Basismatrices
from zoomy_core.misc.misc import Zstruct

from zoomy_core.model.models.poisson import Poisson
import zoomy_core.model.initial_conditions as IC
import zoomy_core.model.boundary_conditions as BC
import zoomy_core.misc.io as io
from zoomy_core.mesh.mesh import compute_derivatives
from zoomy_tests.swashes import plots_paper


import zoomy_core.mesh.mesh as petscMesh
import postprocessing.postprocessing as postprocessing
from zoomy_core.mesh.mesh import convert_mesh_to_jax
import argparse

Solver definition

class MyPoissonSolver(PoissonSolver):
    def update_qaux(self, Q, Qaux, Qold, Qauxold, mesh, model, parameters, time, dt):
        T = Q[0]
        ddTdxx  = compute_derivatives(T, mesh, derivatives_multi_index=([[2]]))[:,0]
        Qaux = Qaux.at[0].set(ddTdxx)
        return Qaux

Model

settings = Settings(
    output=Zstruct(
        directory="outputs/poisson", filename="poisson", clean_directory=True,
    ),
)

bc_tags = ["left", "right"]
bc_tags_periodic_to = ["right", "left"]

bcs = BC.BoundaryConditions( [
        BC.Lambda(tag='left', prescribe_fields={0: lambda t, x, dx, q, qaux, p, n: 1.}),
        BC.Lambda(tag='right', prescribe_fields={0: lambda t, x, dx, q, qaux, p, n: 2.}),
    ]
)

def custom_ic(x):
    Q = np.zeros(1, dtype=float)
    Q[0] = 0.
    return Q

ic = IC.UserFunction(custom_ic)


model = Poisson(
    boundary_conditions=bcs,
)

mesh = petscMesh.Mesh.create_1d((0., 1.), 300, lsq_degree = 2)

solver = MyPoissonSolver(settings=settings)

2025-08-08 07:54:53.926 | WARNING  | library.core.misc.misc:__init__:136 - No 'solver' Zstruct found in Settings. Default: empty Zstruct

2025-08-08 07:54:53.927 | WARNING  | library.core.misc.misc:__init__:139 - No 'model' Zstruct found in Settings. Default: empty Zstruct

2025-08-08 07:54:53.927 | WARNING  | library.core.misc.misc:__init__:156 - No 'parameters' attribute found in model Zstruct. Default: empty Zstruct

Q, Qaux = solver.solve(
    mesh,
    model,
)

io.generate_vtk(os.path.join(settings.output.directory, f"{settings.output.filename}.h5"))

2025-08-08 07:54:55.639 | DEBUG    | library.core.fvm.solver_jax:log_callback_poisson:51 - Newton iterations: 4, final residual norm: 2.924e-10

2025-08-08 07:54:55.700 | INFO     | library.core.fvm.solver_jax:log_callback_execution_time:55 - Finished simulation with in 0.997 seconds

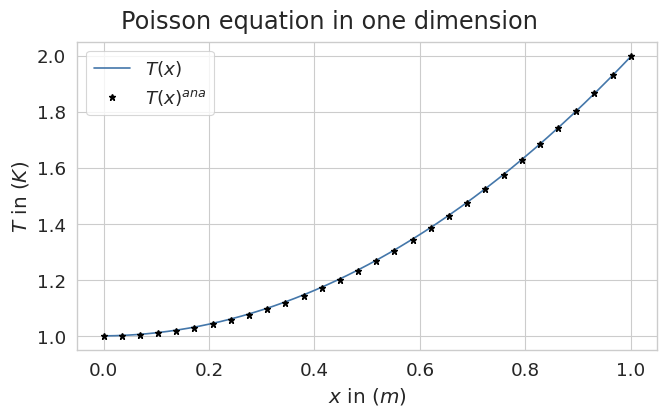

fig = plots_paper.plot_poisson(os.path.join(settings.output.directory, settings.output.filename + ".h5"))
